Basic features
22 built-in I/Os and expandable I/O
14 inputs (sink/source), I12-I15 can be configured as either digital inputs or analog inputs
6-point transistor source and 2 analog outputs
Display resolution: 800 x 400 pixels
PCAP glass HMI display
RTD/thermocouple, PID and PWM control
Remote access, FTP, e-mail, mobile app and custom web page
Operating temperature: -20 to +55 °C
Basic features
22 built-in I/Os and expandable I/O
14 inputs (sink/source), I12-I15 can be configured as either digital inputs or analog inputs
6-point transistor source and 2 analog outputs
Display resolution: 800 x 400 pixels
PCAP glass HMI display
RTD/thermocouple, PID and PWM control
Remote access, FTP, e-mail, mobile app and custom web page
Operating temperature: -20 to +55 °C

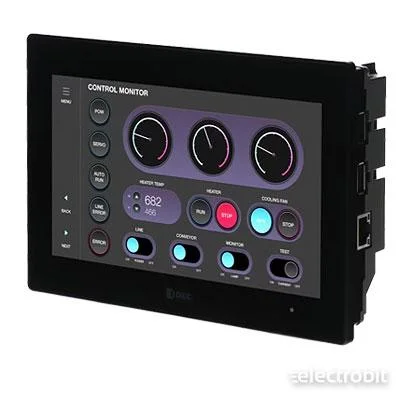

The innovative 7-inch bright-colour multi-display with integrated PLC controller and expandable I/O offers unique features and enhanced functionality for I/O applications. The combination of PLC and HMI on a single platform provides a number of advantages for monitoring and controlling smaller machines, process control systems and HVAC systems.
The innovative 7-inch bright-colour multi-display with integrated PLC controller and expandable I/O offers unique features and enhanced functionality for I/O applications. The combination of PLC and HMI on a single platform provides a number of advantages for monitoring and controlling smaller machines, process control systems and HVAC systems.
Double CPU configuration
The FT2J contains two parallel processors for PLC and HMI. This design enables fast real-time control, extending the range of compatible applications, while not reducing HMI functionality.
Double CPU configuration
The FT2J contains two parallel processors for PLC and HMI. This design enables fast real-time control, extending the range of compatible applications, while not reducing HMI functionality.

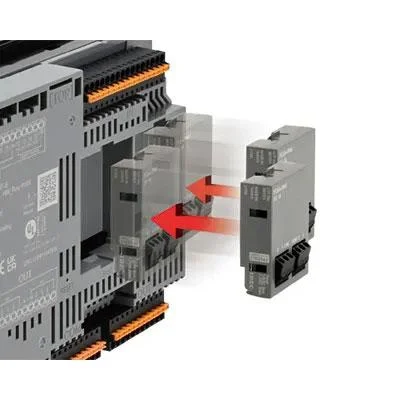

I/O expansion with additional cards
Up to 2 additional digital or analogue I/O cards can be connected to the system to add up to 8 digital I/Os and up to 4 analogue I/Os. This allows flexible I/O configuration to meet the needs of different applications.
I/O expansion with additional cards
Up to 2 additional digital or analogue I/O cards can be connected to the system to add up to 8 digital I/Os and up to 4 analogue I/Os. This allows flexible I/O configuration to meet the needs of different applications.
Fast forward
Up to 20 kHz, the high-speed counter is capable of reading fast pulses. It can be used in a variety of applications, for example to control processes with encoder feedback or to check the volume of a liquid with a flow meter.
Fast forward
Up to 20 kHz, the high-speed counter is capable of reading fast pulses. It can be used in a variety of applications, for example to control processes with encoder feedback or to check the volume of a liquid with a flow meter.
Mechanically resistant
The PCap touch panel has a touch-sensitive control surface that supports multi-touch input and delayed control. It has excellent durability, optical transmittance, accuracy and low power consumption. In addition, the panel is scratch and age resistant.
Mechanically resistant
The PCap touch panel has a touch-sensitive control surface that supports multi-touch input and delayed control. It has excellent durability, optical transmittance, accuracy and low power consumption. In addition, the panel is scratch and age resistant.
