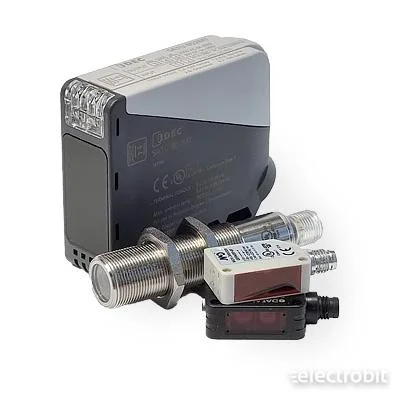

Photo sensors

Square and cylindrical photoelectric sensors for various applications

Photo sensors - Square and cylindrical photoelectric sensors for various applications

Photojournalism

Photoelectric sensors work on the principle of detecting changes in light intensity. These sensors respond to changes in light, allowing the presence, absence, position and movement of an object to be accurately detected. They are widely used in object counting and positioning.
We offer photoelectric sensors from Datasensing (Datalogic) and Idec, leading innovators and quality leaders in sensor manufacturing.


Production of photoelectric sensors is available from Datasensing (Datalogic) and Idec.

Photojournalism

Photoelectric sensors work on the principle of detecting changes in light intensity. These sensors respond to changes in light, allowing the presence, absence, position and movement of an object to be accurately detected. They are widely used in object counting and positioning.
We offer photoelectric sensors from Datasensing (Datalogic) and Idec, leading innovators and quality leaders in sensor manufacturing.


Production of photoelectric sensors is available from Datasensing (Datalogic) and Idec.

Don't forget accessories

We offer a wide range of different clamps for mounting cylindrical and square photoelectric sensors.
Several types of sensors also require a reflector (mirror). The SA1U photoelectric sensor kit already includes an L-clamp and a reflector if required.

Idec IAC-R8 reflektor
Idec IAC-R8 reflektor

Don't forget accessories

We offer a wide range of different clamps for mounting cylindrical and square photoelectric sensors.
Several types of sensors also require a reflector (mirror). The SA1U photoelectric sensor kit already includes an L-clamp and a reflector if required.

Types of photo sensors

. . . . . . . . . .
TechnologyDrawing Description
Detection of interruption of a through-beam
Through-beam
IDEC Photoelectric Sensor The sensor is triggered when the beam between the two transceivers is interrupted. Also available with Class 1 laser beam. Transmitter and receiver are two separate devices.
Polarized Reflected Fast Interrupt Detection
Polarlized Retroflective
IDEC Photoelectric Sensor The sensor is triggered when the reflected beam from the reflector is interrupted. The transmitter and receiver are in the same housing.The SA1U sensor has a reflector as a kit.
Detection of reflection from an object (diffuse reflection)
Diffuse-reflective
IDEC photoelectric sensor The sensor is triggered when the receiver detects a fast reflection of the transmitter from an object. Transmitter and receiver are in the same housing.
Detection of reflection from a short distance object
Small-beam Reflective
IDEC Photoelectric Sensor The sensor is triggered when the receiver detects a fast reflection of the transmitter from an object. The distance to the object is very small. The transmitter and receiver are in the same housing.
Detection of reflection from an object by background suppression
Background Suppression
IDEC Photoelectric Sensor The sensor is triggered when the receiver detects a fast reflection from the transmitter from an object. Background noise attenuation is added (when the object and the background have similar reflections). Transmitter and receiver are in the same enclosure.
Detection of reflection from an object at a fixed distance
Convergent Reflective
IDEC Photoelectric Sensor The sensor is triggered when the receiver detects a fast reflection of the transmitter from an object. The distance to the object is within a specified range. Transmitter and receiver are in the same enclosure.
Detection of transparent and highly reflective objects
Coaxial Polarized Retro-reflective
IDEC Photoelectric Sensor The sensor is activated when the reflected beam from the reflector is distorted. Designed for transparent and highly reflective objects. Transmitter and receiver in the same housing.

Types of photo sensors

. . . . . . . . . .
TechnologyDrawing Description
Detection of interruption of a through-beam
Through-beam
IDEC Photoelectric Sensor The sensor is triggered when the beam between the two transceivers is interrupted. Also available with Class 1 laser beam. Transmitter and receiver are two separate devices.
Polarized Reflected Fast Interrupt Detection
Polarlized Retroflective
IDEC Photoelectric Sensor The sensor is triggered when the reflected beam from the reflector is interrupted. The transmitter and receiver are in the same housing.The SA1U sensor has a reflector as a kit.
Detection of reflection from an object (diffuse reflection)
Diffuse-reflective
IDEC photoelectric sensor The sensor is triggered when the receiver detects a fast reflection of the transmitter from an object. Transmitter and receiver are in the same housing.
Detection of reflection from a short distance object
Small-beam Reflective
IDEC Photoelectric Sensor The sensor is triggered when the receiver detects a fast reflection of the transmitter from an object. The distance to the object is very small. The transmitter and receiver are in the same housing.
Detection of reflection from an object by background suppression
Background Suppression
IDEC Photoelectric Sensor The sensor is triggered when the receiver detects a fast reflection from the transmitter from an object. Background noise attenuation is added (when the object and the background have similar reflections). Transmitter and receiver are in the same enclosure.
Detection of reflection from an object at a fixed distance
Convergent Reflective
IDEC Photoelectric Sensor The sensor is triggered when the receiver detects a fast reflection of the transmitter from an object. The distance to the object is within a specified range. Transmitter and receiver are in the same enclosure.
Detection of transparent and highly reflective objects
Coaxial Polarized Retro-reflective
IDEC Photoelectric Sensor The sensor is activated when the reflected beam from the reflector is distorted. Designed for transparent and highly reflective objects. Transmitter and receiver in the same housing.

Tootefiltrid AvaAvaSulgeSulge

Kiire tüüp






Kuju



Töökaugus

0,01 m

LightON / DarkON






Kiire suund



Korpuse materjal






Tuvastatav objekt




Väljundi tüüp







Väljund





Tüüp





Toitepinge




Tehnoloogia











Ühendus








Tootja



Tarneklass




««123456»»»
S5N-PA-5-M03-PP silindriline fotoandur M18 S5N-PA-5-M03-PP silindriline fotoandur M18 electrobit S5N-PA-5-M03-PP silindriline fotoandur M18 Otse 2,5 96 43

Artiklikood: DA_952001001

S5N-PA-5-M03-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine tausta summutamisega
Kiir: otse; Töökaugus: 150 mm
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x82 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-B01-PP silindriline fotoandur M18 S5N-PA-2-B01-PP silindriline fotoandur M18 electrobit S5N-PA-2-B01-PP silindriline fotoandur M18 Otse 2,5 81,5 43

Artiklikood: DA_952001011

S5N-PA-2-B01-PP silindriline fotoandur M18

Polariseeritud peegeldunud kiire katkestamise tuvastamine
Kiir: otse; Töökaugus: 4 m
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x67 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-5-B01-PP silindriline fotoandur M18 S5N-PA-5-B01-PP silindriline fotoandur M18 electrobit S5N-PA-5-B01-PP silindriline fotoandur M18 Otse 2,5 81,5 43

Artiklikood: DA_952001021

S5N-PA-5-B01-PP silindriline fotoandur M18

Polariseeritud peegeldunud kiire katkestamise tuvastamine
Kiir: otse; Töökaugus: 4 m
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x67 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-2-B01-PP silindriline fotoandur M18 S5N-PR-2-B01-PP silindriline fotoandur M18 electrobit S5N-PR-2-B01-PP silindriline fotoandur M18 90° nurk 14,5 93,5 43

Artiklikood: DA_952001031

S5N-PR-2-B01-PP silindriline fotoandur M18

Polariseeritud peegeldunud kiire katkestamise tuvastamine
Kiir: 90°; Töökaugus: 4 m
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x79 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-5-B01-PP silindriline fotoandur M18 S5N-PR-5-B01-PP silindriline fotoandur M18 electrobit S5N-PR-5-B01-PP silindriline fotoandur M18 90° nurk 14,5 93,5 43

Artiklikood: DA_952001041

S5N-PR-5-B01-PP silindriline fotoandur M18

Polariseeritud peegeldunud kiire katkestamise tuvastamine
Kiir: 90°; Töökaugus: 4 m
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x79 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-C01-PP silindriline fotoandur M18 S5N-PA-2-C01-PP silindriline fotoandur M18 electrobit S5N-PA-2-C01-PP silindriline fotoandur M18 Otse 2,5 81,5 43

Artiklikood: DA_952001051

S5N-PA-2-C01-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine
Kiir: otse; Töökaugus: 700 mm
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x67 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-5-C01-PP silindriline fotoandur M18 S5N-PA-5-C01-PP silindriline fotoandur M18 electrobit S5N-PA-5-C01-PP silindriline fotoandur M18 Otse 2,5 81,5 43

Artiklikood: DA_952001061

S5N-PA-5-C01-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine
Kiir: otse; Töökaugus: 700 mm
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x67 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-2-C01-PP silindriline fotoandur M18 S5N-PR-2-C01-PP silindriline fotoandur M18 electrobit S5N-PR-2-C01-PP silindriline fotoandur M18 90° nurk 14,5 93,5 43

Artiklikood: DA_952001071

S5N-PR-2-C01-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine
Kiir: 90°; Töökaugus: 700 mm
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x79 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-5-C01-PP silindriline fotoandur M18 S5N-PR-5-C01-PP silindriline fotoandur M18 electrobit S5N-PR-5-C01-PP silindriline fotoandur M18 90° nurk 14,5 93,5 43

Artiklikood: DA_952001081

S5N-PR-5-C01-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine
Kiir: 90°; Töökaugus: 700 mm
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x79 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-D00-PP silindriline fotoandur M18 S5N-PA-2-D00-PP silindriline fotoandur M18 electrobit S5N-PA-2-D00-PP silindriline fotoandur M18 Otse 2,5 71,5 42

Artiklikood: DA_952001091

S5N-PA-2-D00-PP silindriline fotoandur M18

Fix focus beam
Kiir: otse; Töökaugus: 100 mm
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x57 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-5-D00-PP silindriline fotoandur M18 S5N-PA-5-D00-PP silindriline fotoandur M18 electrobit S5N-PA-5-D00-PP silindriline fotoandur M18 Otse 2,5 71,5 42

Artiklikood: DA_952001101

S5N-PA-5-D00-PP silindriline fotoandur M18

Fix focus beam
Kiir: otse; Töökaugus: 100 mm
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x57 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-2-D00-PP silindriline fotoandur M18 S5N-PR-2-D00-PP silindriline fotoandur M18 electrobit S5N-PR-2-D00-PP silindriline fotoandur M18 90° nurk 14,5 83,5 42

Artiklikood: DA_952001111

S5N-PR-2-D00-PP silindriline fotoandur M18

Fix focus beam
Kiir: 90°; Töökaugus: 100 mm
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x69 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-5-D00-PP silindriline fotoandur M18 S5N-PR-5-D00-PP silindriline fotoandur M18 electrobit S5N-PR-5-D00-PP silindriline fotoandur M18 90° nurk 14,5 83,5 42

Artiklikood: DA_952001121

S5N-PR-5-D00-PP silindriline fotoandur M18

Fix focus beam
Kiir: 90°; Töökaugus: 100 mm
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x69 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-E01-PP silindriline fotoandur M18 S5N-PA-2-E01-PP silindriline fotoandur M18 electrobit S5N-PA-2-E01-PP silindriline fotoandur M18 Otse 2,5 87,5 43

Artiklikood: DA_952001131

S5N-PA-2-E01-PP silindriline fotoandur M18

Optic fiber amplifier
Kiir: otse; Töökaugus: 30...100 mm
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x73 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-5-E01-PP silindriline fotoandur M18 S5N-PA-5-E01-PP silindriline fotoandur M18 electrobit S5N-PA-5-E01-PP silindriline fotoandur M18 Otse 2,5 87,5 43

Artiklikood: DA_952001141

S5N-PA-5-E01-PP silindriline fotoandur M18

Optic fiber amplifier
Kiir: otse; Töökaugus: 30...100 mm
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x73 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-F01-PP silindriline fotoandur M18 S5N-PA-2-F01-PP silindriline fotoandur M18 electrobit S5N-PA-2-F01-PP silindriline fotoandur M18 Otse 2,5 81,5 43

Artiklikood: DA_952001151

S5N-PA-2-F01-PP silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, vastuvõtja
Kiir: otse; Töökaugus: 20 m
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x67 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-5-F01-PP silindriline fotoandur M18 S5N-PA-5-F01-PP silindriline fotoandur M18 electrobit S5N-PA-5-F01-PP silindriline fotoandur M18 Otse 2,5 81,5 43

Artiklikood: DA_952001161

S5N-PA-5-F01-PP silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, vastuvõtja
Kiir: otse; Töökaugus: 20 m
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x67 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-2-F01-PP silindriline fotoandur M18 S5N-PR-2-F01-PP silindriline fotoandur M18 electrobit S5N-PR-2-F01-PP silindriline fotoandur M18 90° nurk 14,5 93,5 43

Artiklikood: DA_952001171

S5N-PR-2-F01-PP silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, vastuvõtja
Kiir: 90°; Töökaugus: 20 m
PNP ; NO+NC; 2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x79 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-5-F01-PP silindriline fotoandur M18 S5N-PR-5-F01-PP silindriline fotoandur M18 electrobit S5N-PR-5-F01-PP silindriline fotoandur M18 90° nurk 14,5 93,5 43

Artiklikood: DA_952001181

S5N-PR-5-F01-PP silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, vastuvõtja
Kiir: 90°; Töökaugus: 20 m
PNP ; NO+NC; M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x79 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-G00-XG silindriline fotoandur M18 S5N-PA-2-G00-XG silindriline fotoandur M18 electrobit S5N-PA-2-G00-XG silindriline fotoandur M18 Otse 2,5 71,5 43

Artiklikood: DA_952001191

S5N-PA-2-G00-XG silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, saatja
Kiir: otse; Töökaugus: 20 m
2m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x57 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-5-G00-XG silindriline fotoandur M18 S5N-PA-5-G00-XG silindriline fotoandur M18 electrobit S5N-PA-5-G00-XG silindriline fotoandur M18 Otse 2,5 71,5 43

Artiklikood: DA_952001201

S5N-PA-5-G00-XG silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, saatja
Kiir: otse; Töökaugus: 20 m
M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x57 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-2-G00-XG silindriline fotoandur M18 S5N-PR-2-G00-XG silindriline fotoandur M18 electrobit S5N-PR-2-G00-XG silindriline fotoandur M18 Otse 2,5 83,5 43

Artiklikood: DA_952001211

S5N-PR-2-G00-XG silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, saatja
Kiir: otse; Töökaugus: 20 m
2 m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x69 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PR-5-G00-XG silindriline fotoandur M18 S5N-PR-5-G00-XG silindriline fotoandur M18 electrobit S5N-PR-5-G00-XG silindriline fotoandur M18 Otse 2,5 83,5 43

Artiklikood: DA_952001221

S5N-PR-5-G00-XG silindriline fotoandur M18

Läbivkiire katkestamise tuvastamine, saatja
Kiir: otse; Töökaugus: 20 m
M12 pistikuga; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x69 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-M03-PP silindriline fotoandur M18 S5N-PA-2-M03-PP silindriline fotoandur M18 electrobit S5N-PA-2-M03-PP silindriline fotoandur M18 Otse 2,5 93,5 43

Artiklikood: DA_952001231

S5N-PA-2-M03-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine tausta summutamisega
Kiir: otse; Töökaugus: 150 mm
PNP ; NO+NC; 2 m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x82 mm

Hind:

Tellimisel

Lisa päringusse

S5N-PA-2-C10-PP silindriline fotoandur M18 S5N-PA-2-C10-PP silindriline fotoandur M18 electrobit S5N-PA-2-C10-PP silindriline fotoandur M18 Otse 2,5 71,5 42

Artiklikood: DA_952001241

S5N-PA-2-C10-PP silindriline fotoandur M18

Objektilt peegelduse tuvastamine
Kiir: otse; Töökaugus: 100 mm
PNP ; NO+NC; 2 m kaabel; 10...30 VDC
Plastik (PBT / PMMA), Aktiivpind: PMMA; Ø18x57 mm

Hind:

Tellimisel

Lisa päringusse

««123456»»»
